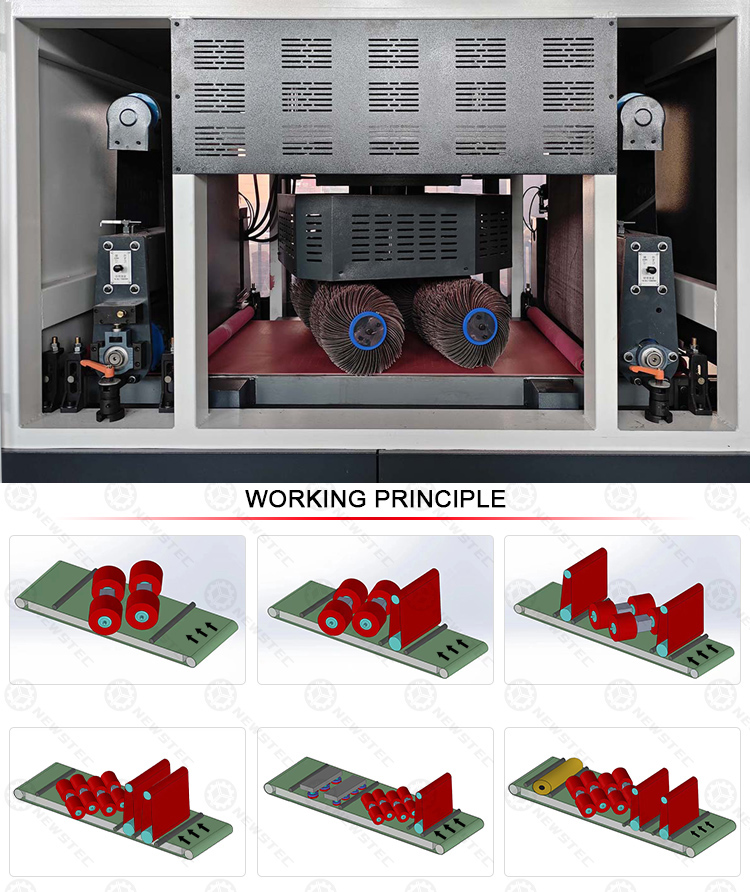

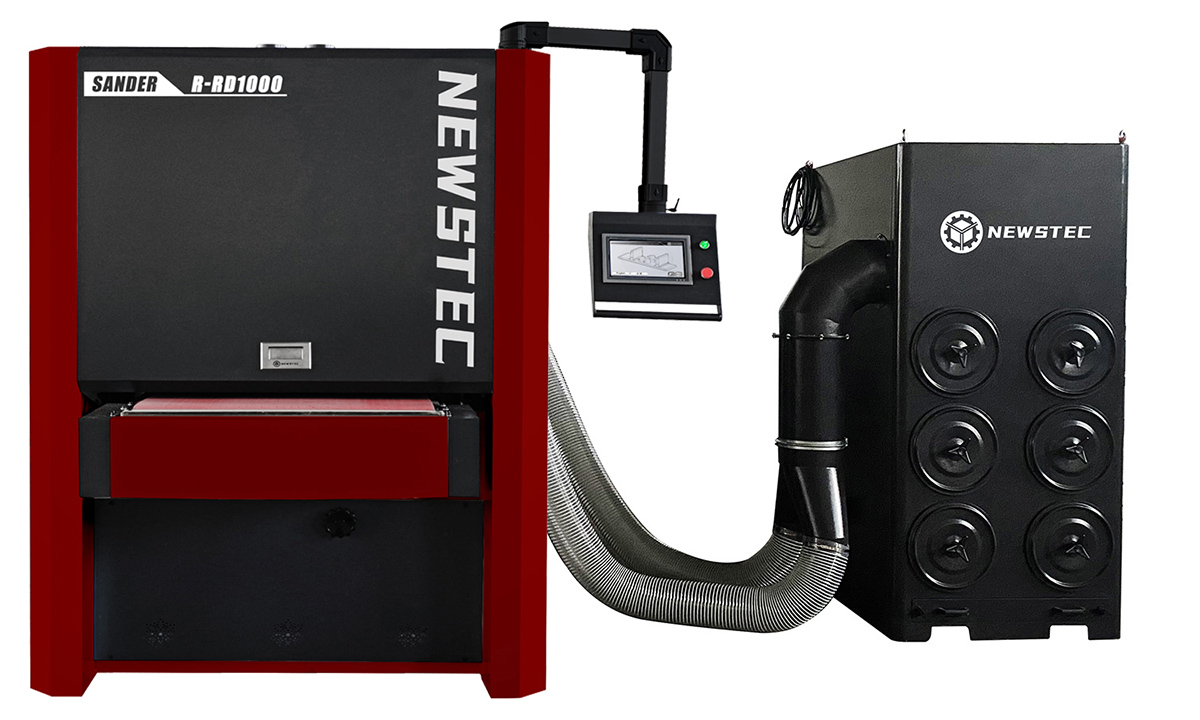

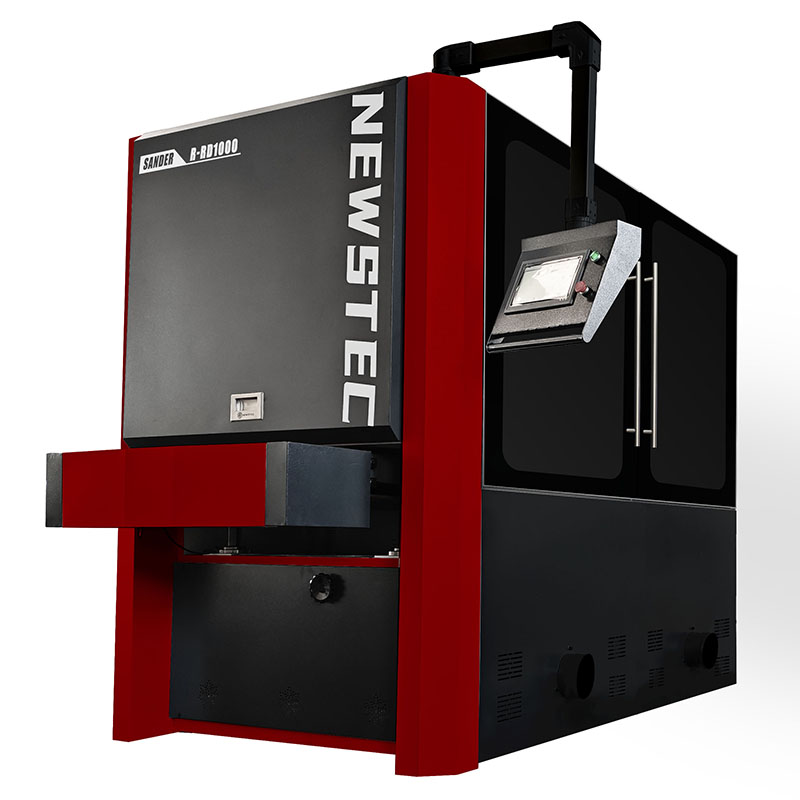

Matching laser cutting machine, CNC stamping, a variety of CNC processing or other machining deburring edge production line,
equipment through linear processing, multiple groups of sand line wheel rotation, revolution, alternating, can truly uniform
removal of parts surface, contour edge and hole edge burr and uniform chamfering.

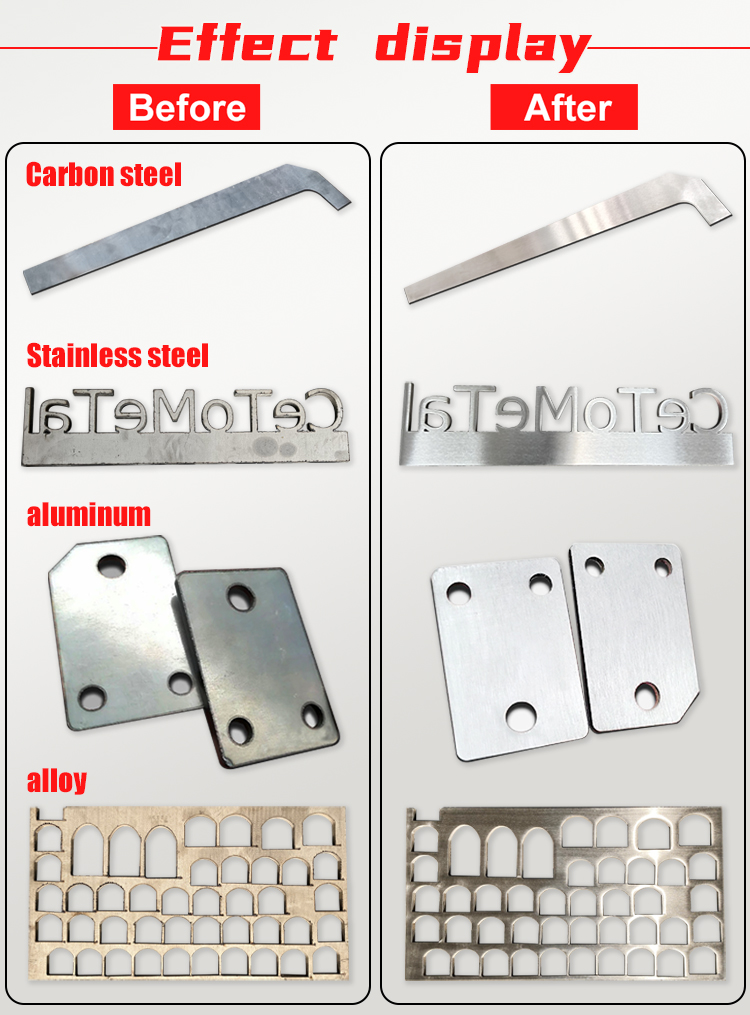

In any cutting, drilling, laser, mill, and other machining processes, burrs, hot slag, and scum will be produced at the edge of
the workpiece, so it is particularly important to choose the correct deburring machine
![](/../../upload/image/20240325/6384697195155494776461029.jpg)

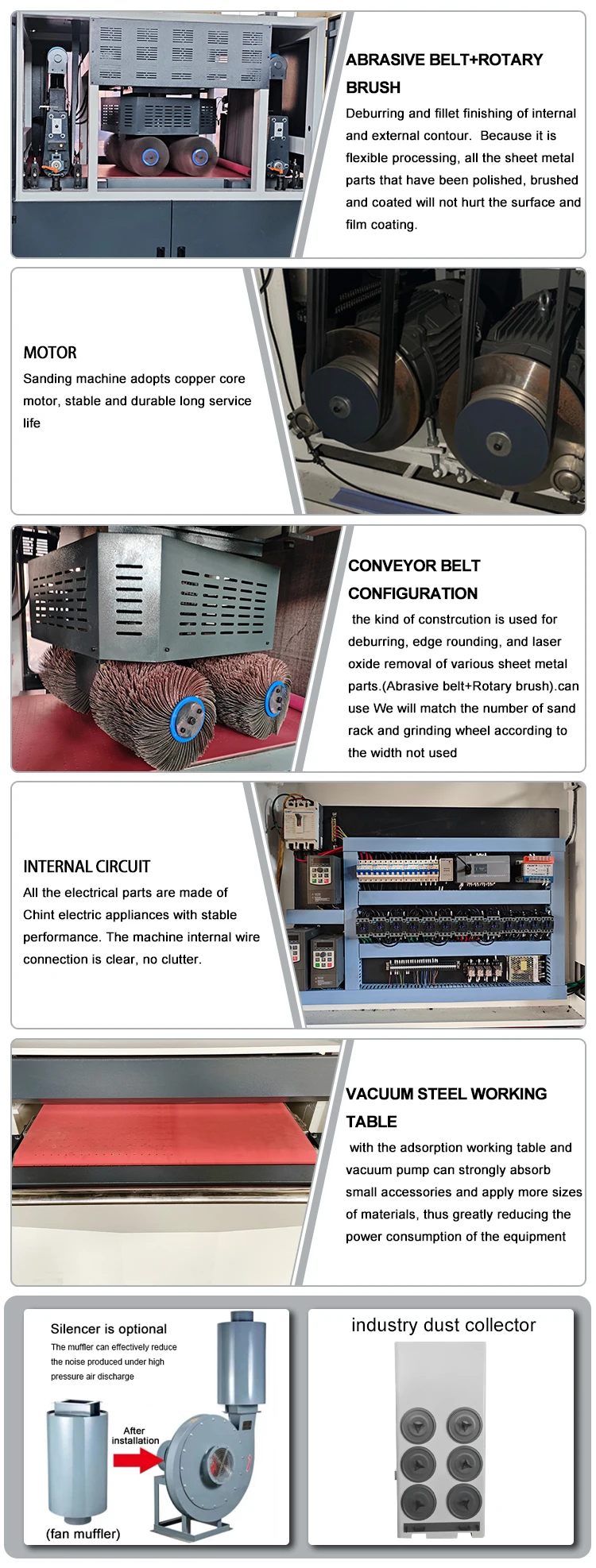

1) Deburring and fillet finishing of internal and external contour. Because it is flexible processing, all the sheet metal parts
that have been polished, brushed and coated will not hurt the surface and film coating.
2) It is suitable for removing burrs in the holes of flat or relatively the same flat sheet metal parts processed by CNC punching
and shearing machines; Removal of burr after laser cutting; Flame cutting or plasma cutting slag removal.
3) Instead of burr, use file, scraper or electric and pneumatic tools for grinding process, so that the workpiece is polished more
evenly; Safer, and effectively reduce labor costs and improve production efficiency.
4) Visual adjustment of grinding and stroke parameters, can only grind the workpiece contour and sharp edge without damaging the
surface, effectively protect the coating of the workpiece, suitable for galvanized plate, coated aluminum plate, copper plate,
stainless steel plate and other surface requirements of the protection of the workpiece.
5) Turbo vacuum adsorption technology is adopted to ensure that the workpiece is firmly adsorbed during grinding, and the
workpiece and shaped workpiece can also be adsorbed and polished after bending, greatly improving the processing range and
efficiency, and preventing pressure loss or failure of the vacuum adsorption system due to blockage. More special magnetic suction
system, when the workpiece is conditional to use magnetic adsorption fixed, greatly reduce the power consumption of equipment,
energy saving and environmental protection, the maximum cost of production savings.
6) The equipment adopts Delta PLC control system, easy to operate, convenient to adjust the grinding amount.
7) If disk adsorption is selected for the product type, the power consumption of the device will be greatly reduced.
The machine uses common consumables in the market, and can also be customized imported sand wheel to
improve production efficiencyand to meet the special requirements of products.
![](/../../upload/image/20240325/6384697195162442319974354.jpg)
![](/../../upload/image/20240325/6384697195174942713702833.jpg)
![](/../../upload/image/20240325/6384697195186577917903894.jpg)
Working width(mm) | 800 | 1000 | 1300 |
|
Min.Working length(mm) | 300 | 300 | 300 |
|
Working thickness(mm) | 0-110 | 0-110 | 0-110 |
|
First motor(kw) | 11 | 15 | 22 |
|
Second motor(kw) | 11 | 11 | 18.5 |
|
Total Power | 44 | 48 | 71 |
|
Transmission motor power(kw) | 3 | 3 | 4 |
|
Abrasive belt size(mm) | 820*2000 | 1020*2000 | 1320*2000 |
|
Overall dimensions(mm) | 3000*1700*2430 | 3200*1900*2430 | 3500*2200*2430 |
|
Weight(kg) | 3000 | 3400 | 4600 |
|
![](/../../upload/image/20240325/6384697195197515057403127.jpg)
![](/../../upload/image/20240325/6384697195206614388374943.jpg)
1) The equipment adopts Delta PIC control system, easy to operate, digital monitoring grinding friction
resistance, convenient and quick adjustment of grinding amount.
2) For products with magnetic capability, disk adsorption and fixation can be selected. The negative
pressure adsorption system does not need to be opened, which will greatly reduce the power consumption of the device.
3) The machine uses common consumables in the market, without special customization or purchase
by designated suppliers. The limitation of binding consumables to imported equipment or some domestic brand

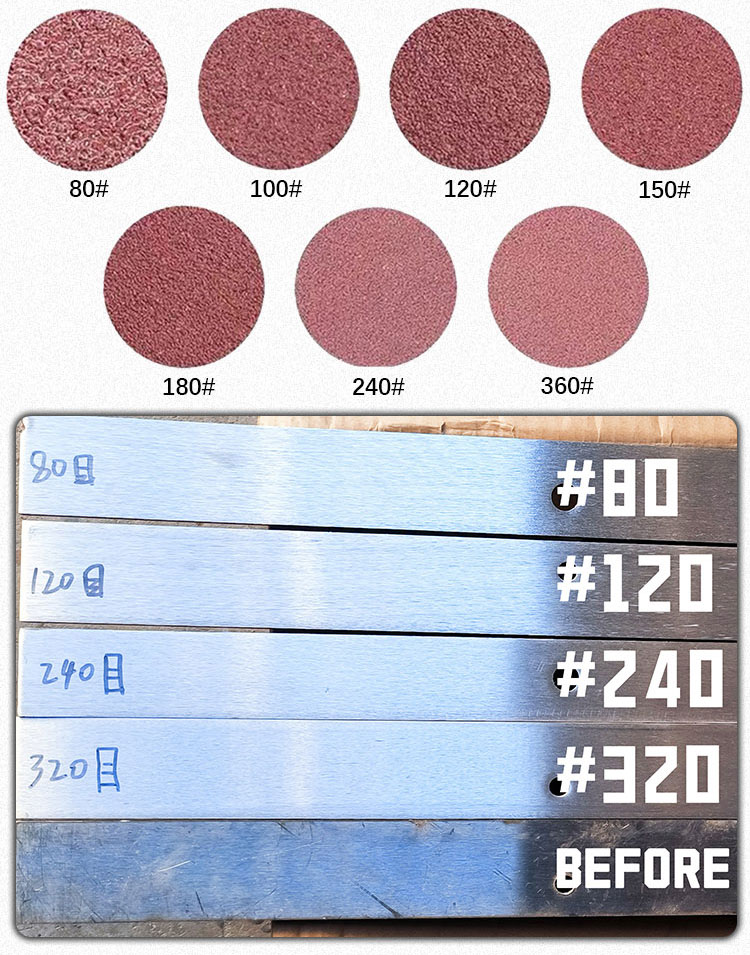

equipment is eliminated, which greatly reduces the user's use cost. (Size: 300-300-25, 80-120 mesh)
4) Sand line wheel can also be customized to improve production efficiency and meet the special requirements of products.
5) The equipment is equipped with a dust collector interface to absorb the dust, metal chips and dust generated in the
working process of the equipment, and collect them uniformly in the dust collection box of the equipment to keep the working
environment clean. The dust collector itself has the recoil function, which can automatically clean the filter element to
prevent the dust removal failure caused by blockage (optional)
