automatic 630/800/1000/1300 mm wide metal sheet belt sander for SS aluminum copper oxide skin deburring metal polishing machine Price:¥ Id:R-R 630/800/1000/1300 Place of origin:china

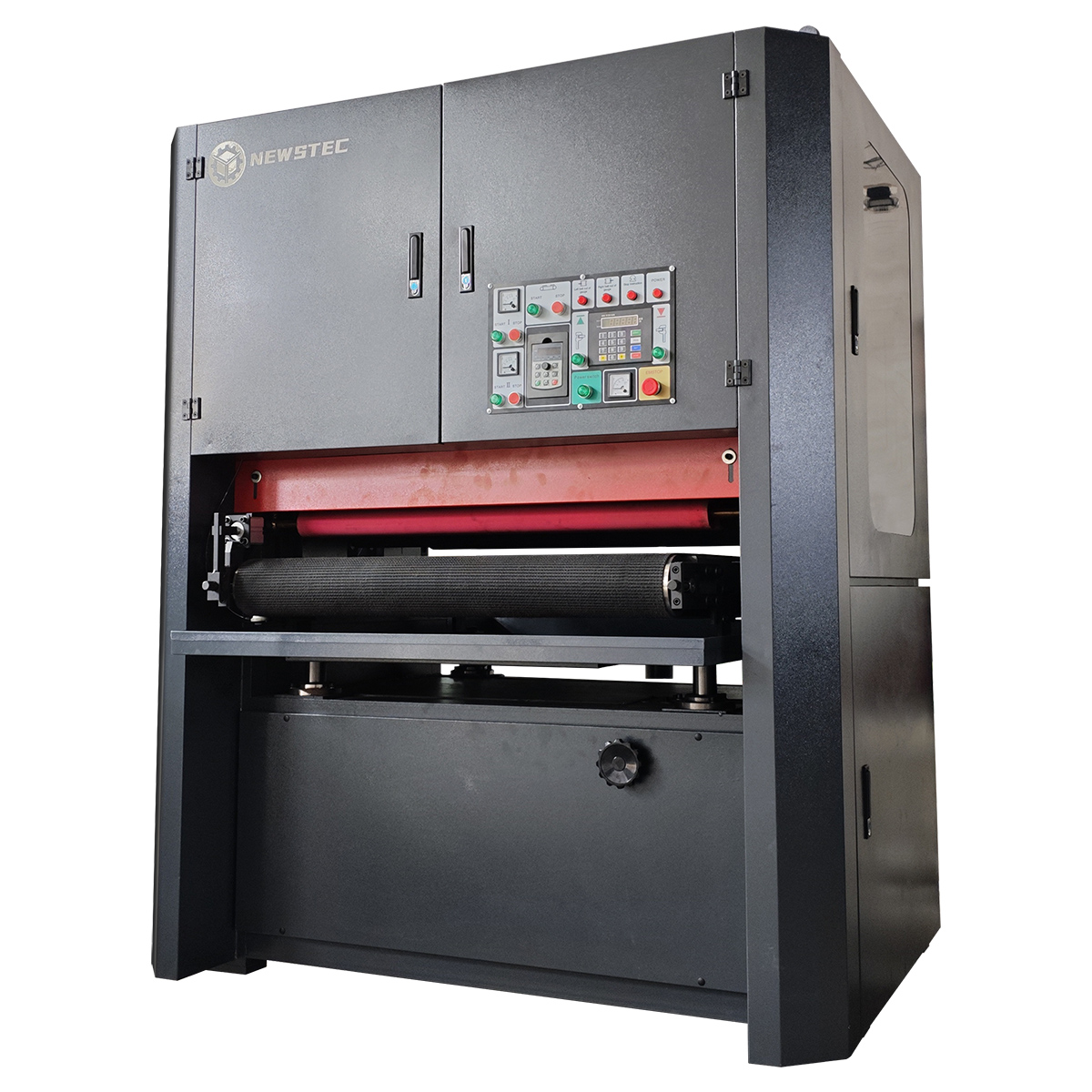

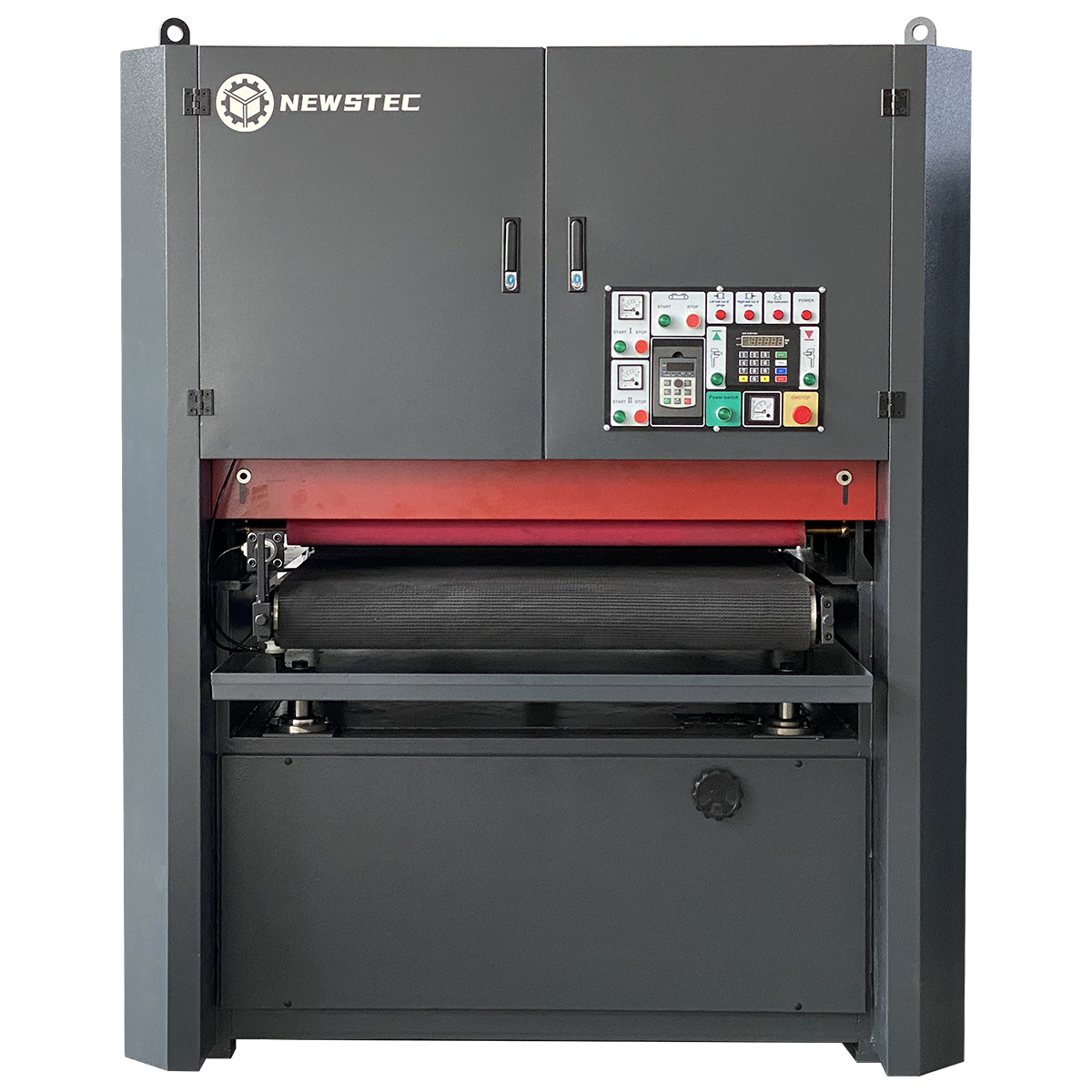

Metal sander grinding machine

Online inquiry
Detailed content Specification parameter Product packaging


Main Features

1. The micro-computer front control panel can be operated conveniently and quickly.

2. The feed speed is controlled by the frequency converter, which can be operated flexibly and conveniently.

3. The frame has high strength, large weight and nice stability.

4. The maintenance is convenient, safety performance is excellent, and the failure rate is low.

5. The sanding unit adopts the cast structure with slight deformation and excellent damping performance.

6..High-strength motor and top brand bearing ensure best performance.

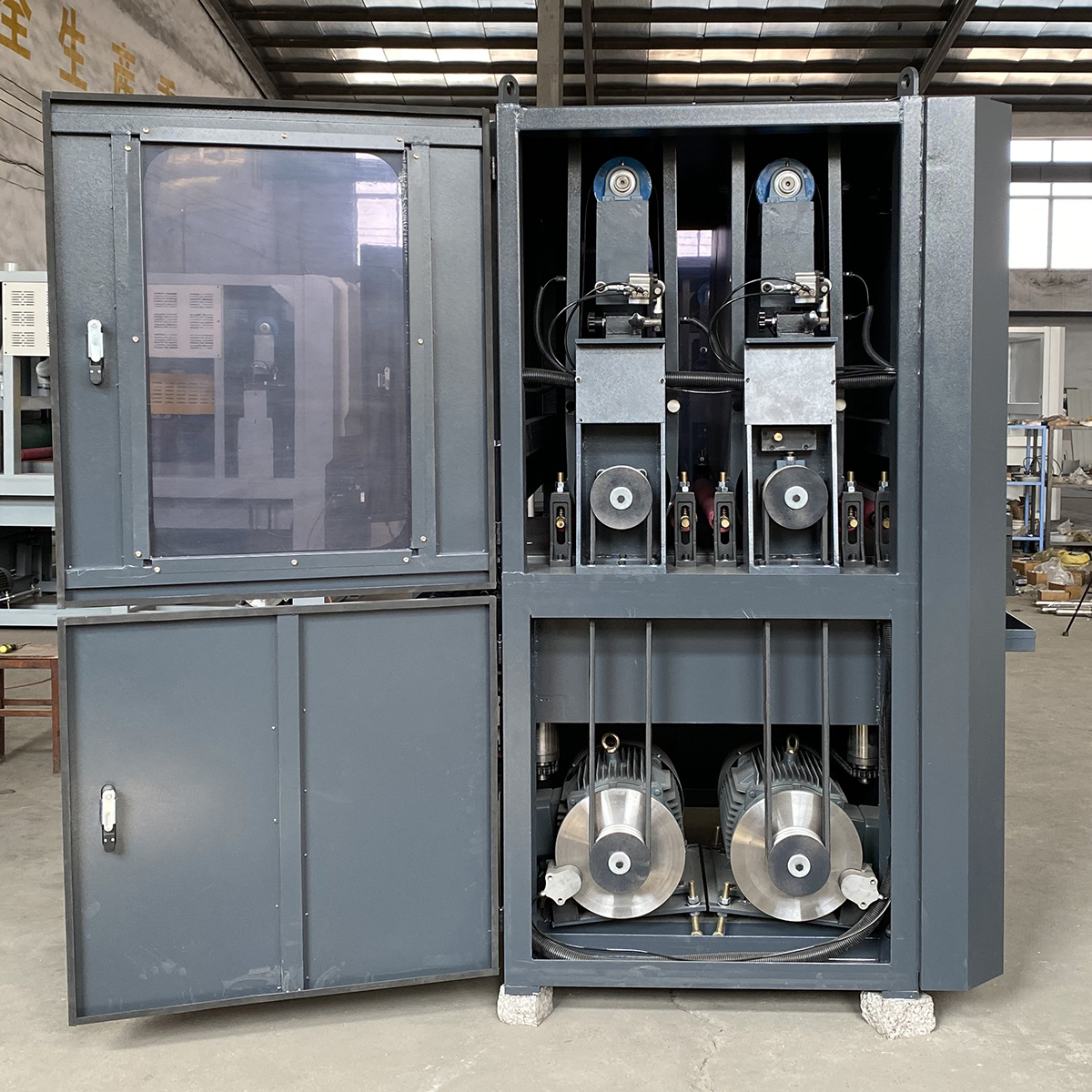

This equipment is a wet belt model with two sand frames. Mainly used to deal with the deburring, workpiece edge,

 hole deburring effect, the workpiece surface sanding, make the workpiece surface around and hole contour edge

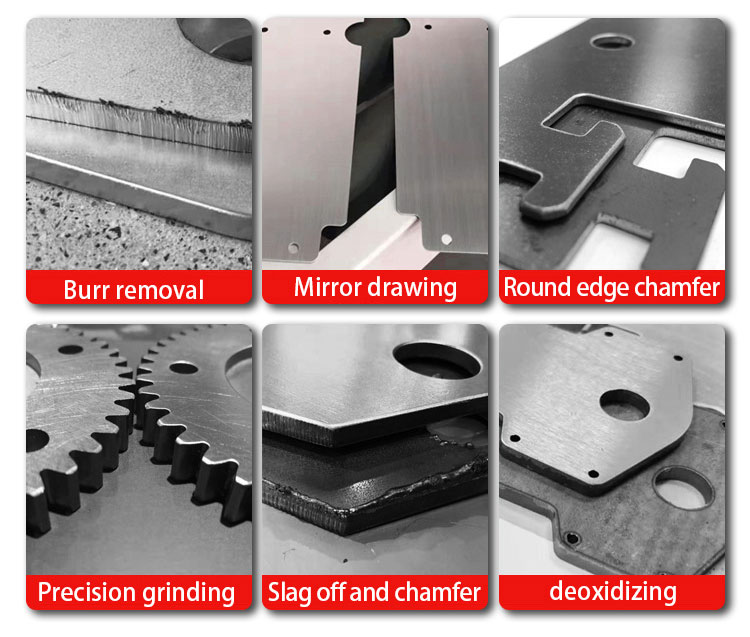

smooth and round, and realize the metal sheet surface wire drawing, oxidation skin, polishing, slight chamfering

processing. For stamping, shearing, laser cutting, plasma cutting and other processes of the burr can be removed

in a full range of one-time, safe and reliable processing process,so that the workpiece to achieve the perfect effect.





Working width(mm)

630

1000

Min.Working length(mm)

300

300

Working thickness(mm)

0-110

0-110

First motor(kw)

11

18.5

Second motor(kw)

7.5

15

Total Power

19.97

36.55

Transmission motor power(kw)

1.1

2.2

Abrasive belt size(mm)

650*1900

1020*2200

Overall dimensions(mm)

1800*1200*2100

1900*1600*2100

Weight(kg)

1300

1800
